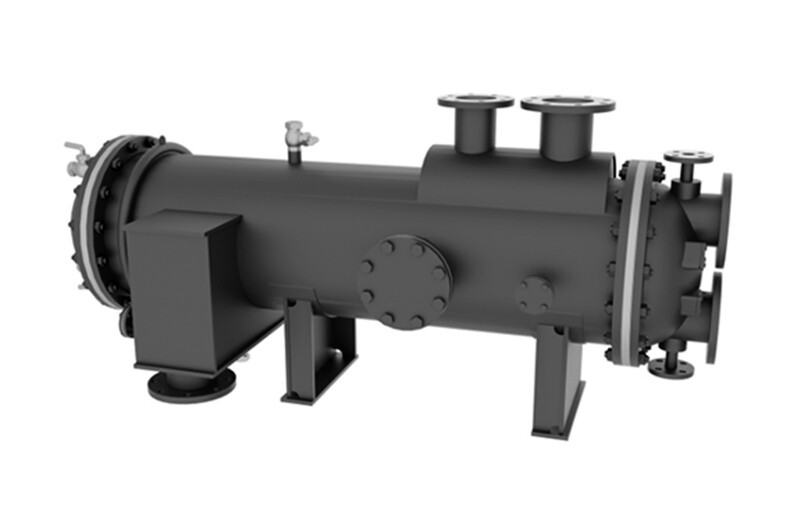

Shell Tube Drain Cooler

A Shell and Tube Drain Cooler is a type of heat exchanger used in industrial processes to cool hot condensate or other process fluids before disposal or recirculation. It is designed to recover heat while reducing the temperature of the fluid to a safe or manageable level.

Shell and Tube Design:

Consists of a shell (outer vessel) and tubes (inner pathways).

Hot fluid (e.g., condensate, drain water) flows through the tubes, while cooling water flows through the shell (or vice versa, depending on design).

Heat Transfer Mechanism:

Heat from the hot drain fluid is transferred to the cooling medium (usually water or air).

Improves energy efficiency by recovering waste heat.

Materials:

Typically made of carbon steel, stainless steel, or other corrosion-resistant alloys depending on fluid compatibility.

Applications:

Used in power plants, refineries, chemical plants, and steam systems.

Cools boiler blowdown, condensate, or process drains before discharge.

Benefits:

Energy Recovery: Precious heat is reclaimed rather than wasted.

Safety: Reduces fluid temperature to prevent thermal hazards.

Environmental Compliance: Meets regulations for effluent temperature discharge limits.

Common Industries Using Drain Coolers:

Steam Power Plants (for boiler blowdown cooling)

Oil & Gas (for process fluid cooling)

Chemical Processing (handling corrosive or high-temperature drains)
