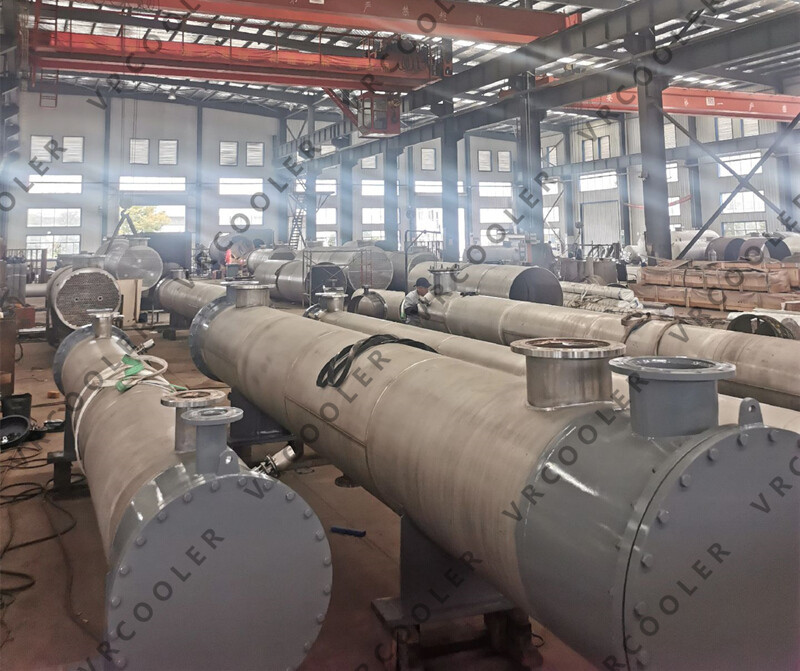

Shell and Tube Reactor in the FCC Process

The shell and tube reactor can provide suitable temperature and pressure conditions to optimize the catalytic cracking reaction and improve the efficiency of converting heavy oil into light petroleum products.

Through reasonable design, the shell and tube reactor can realize uniform flow of reactants, ensure full contact of catalysts, and improve the reaction rate.

In the shell and tube reactor, the catalyst exists in the form of fixed bed or fluidized bed, giving full play to its catalytic effect and promoting the cracking of heavy oil.

The shell-and-tube reactor is usually combined with a catalyst regeneration system to periodically remove coke from the catalyst to maintain catalyst activity and reaction efficiency.

During the catalytic cracking process, heavy oils are converted to gasoline, diesel and other light petroleum products, and shell and tube reactors help to improve the yield and quality of these products.

The design and operation of the reactor can regulate the selectivity of the cracking reaction and control the generation of different types of light oil products to meet market demand.
