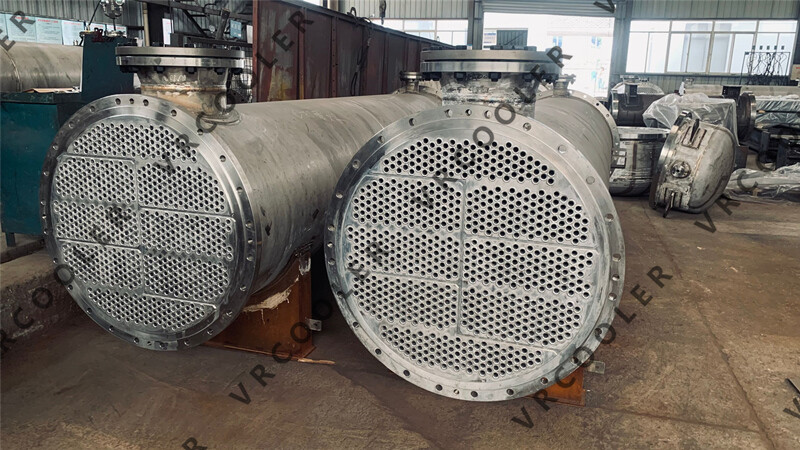

A shell and tube heat exchanger is a common type of heat transfer equipment. It consists of a shell (a large cylindrical container) and a bundle of tubes inside.
The basic working principle is that two fluids with different temperatures flow through the shell side and the tube side respectively. Heat is transferred between the fluids through the walls of the tubes. One fluid flows through the tubes, while the other flows around the tubes within the shell.
The advantages of shell and tube heat exchangers include:
- High heat transfer efficiency.
- Ability to handle large temperature and pressure differences.
- Wide range of applications in various industries such as chemical, petrochemical, power generation, and HVAC.
Some examples of its applications are:
- In industrial processes to heat or cool fluids.
- In power plants for steam condensation or preheating.
- In refrigeration and air conditioning systems.
Overall, the shell and tube heat exchanger is a crucial component in many industrial processes for efficient heat transfer.
