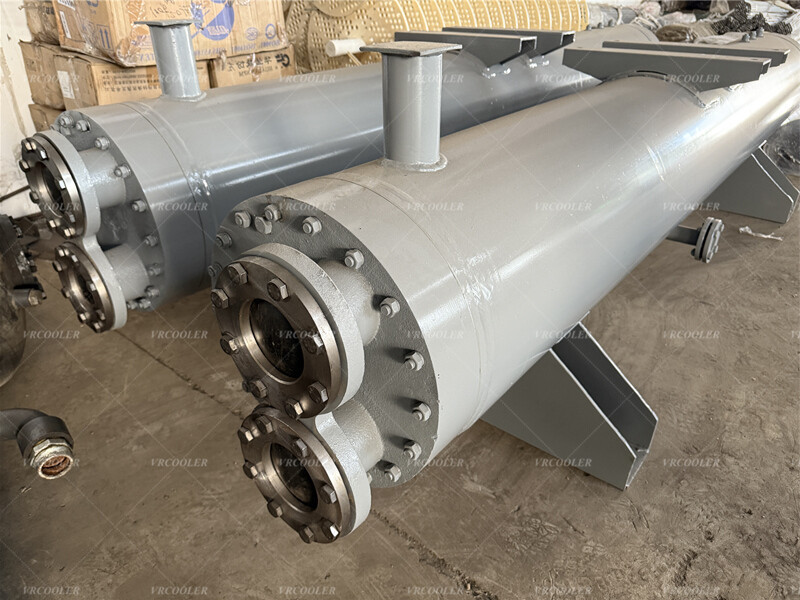

Application Examples of Water-cooled Condensers
Air-conditioning system: In the air-conditioning system of the cave depot project, due to its complex building layout, large burial depth, and the distance between the air-conditioning plant room and the outdoor apron, the arrangement of outdoor air-cooled condenser or cooling tower is often faced with difficulties, and therefore water-cooled condenser is adopted. The use of fire pool water as a coolant, through the cooling water circulation system for water-cooled condenser cooling, summer indoor waste heat into the fire pool, winter absorption of fire pool sensible heat heat, the use of environmental temperature difference between day and night and the difference in soil temperature, through the pool pool wall will be dispersed heat into the surrounding environment.
White wine brewing: In the picking process of white wine production, it is necessary to cool the wine vapor into wine liquid. A water-cooled condenser for wine picking cools the wine vapors entering the conduit by adding cold water to the shell to liquefy them into wine. The condenser is also equipped with a collection alert structure to help operators know if there is any leakage.
Chemical industry: In the vapor condensation process of distillation tower of petrochemical and fine chemical industry, the water-cooled condenser in the closed cooling tower is used to condense the high temperature vapors in the upper part of the distillation tower, such as methanol, benzene and other organic solvents, to realize reflux control. In decompression distillation, for the vacuum pump or condenser to provide low-temperature cooling water, improve separation efficiency, but also to deal with high boiling point or flammable and explosive media, to avoid the risk of leakage due to media volatilization of open cooling tower.
Power electronics industry: in the transmission and distribution of power electronic equipment water cooling system, the use of chiller units to directly cool the deionized water closed water cooling system. The chiller is connected in series between the main circulation pump and the cooled power electronic equipment, the heat generated by the power electronic equipment is transferred to the water, which is lifted into the chiller through the main circulation pump, and the cooled water is then returned to the power electronic equipment to form a closed cycle, which meets the cooling requirements of the power electronic equipment and improves its service life.
PCB circuit board factory: PCB circuit board factory will use water-cooled box chiller, its main configuration includes scroll compressor, shell and tube evaporator, shell and tube condenser. The water-cooled condenser cools the high-temperature and high-pressure refrigerant gas in the refrigeration system, making it condense into liquid and realizing the refrigeration cycle, which guarantees the cooling demand in the production process of PCB circuit boards.
