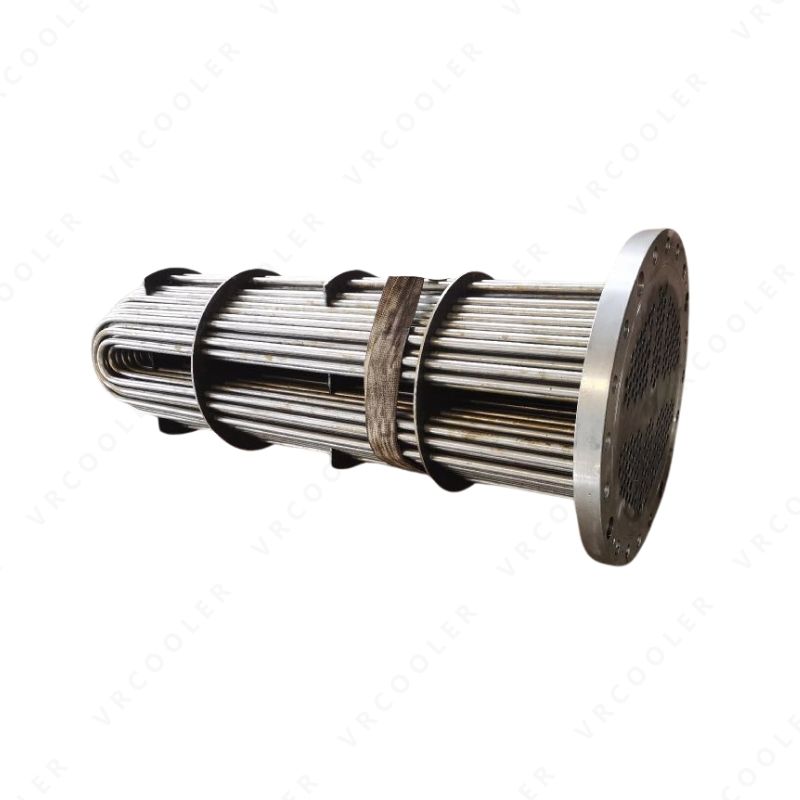

Optimize your industrial thermal management with our precision-engineered U-Tube Heat Exchanger.

Designed to withstand extreme temperature fluctuations and high-pressure environments, our U-Tube systems deliver the ultimate balance of reliability, performance, and cost-efficiency for your independent site or global distribution.

Problem & Solution

The Challenge: High temperature differences in industrial processes often lead to severe thermal stress, causing traditional fixed-tubesheet heat exchangers to leak, crack, or fail prematurely.

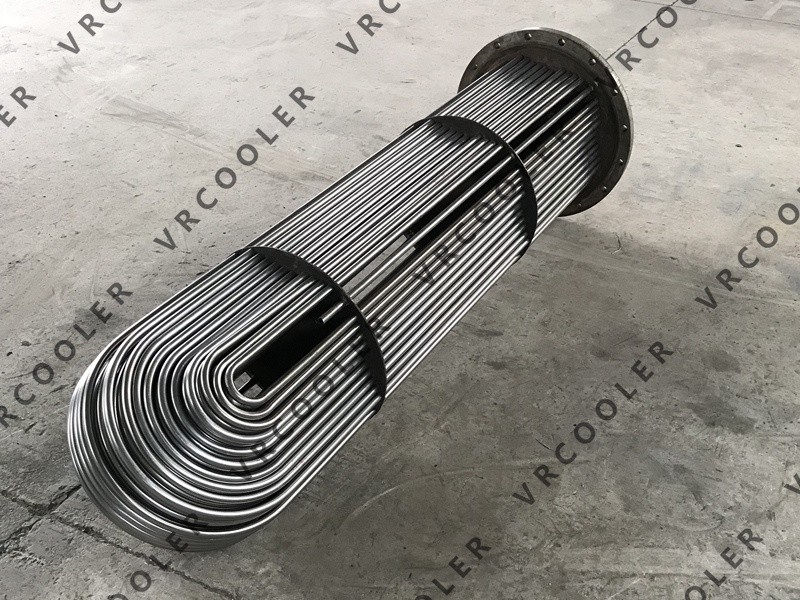

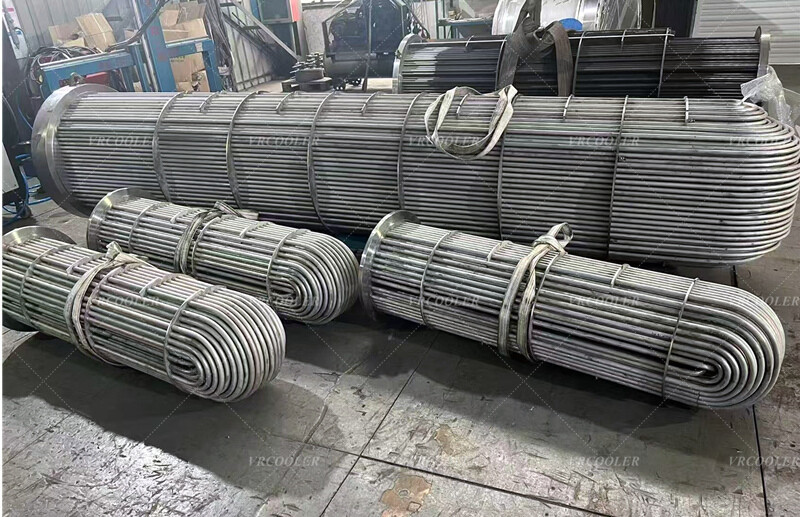

The Solution: Our U-Tube design solves this critical issue. By fixing the tube bundle at only one end, the U-shaped tubes are free to expand and contract independently of the shell. This "floating" design eliminates thermal stress, ensuring a significantly longer service life even in the most demanding conditions.

Key Features & Benefits

Superior Thermal Stress Handling

●: The unique U-shaped design allows for unlimited thermal expansion. It is the gold standard for applications involving high-temperature steam or rapid heating/cooling cycles.

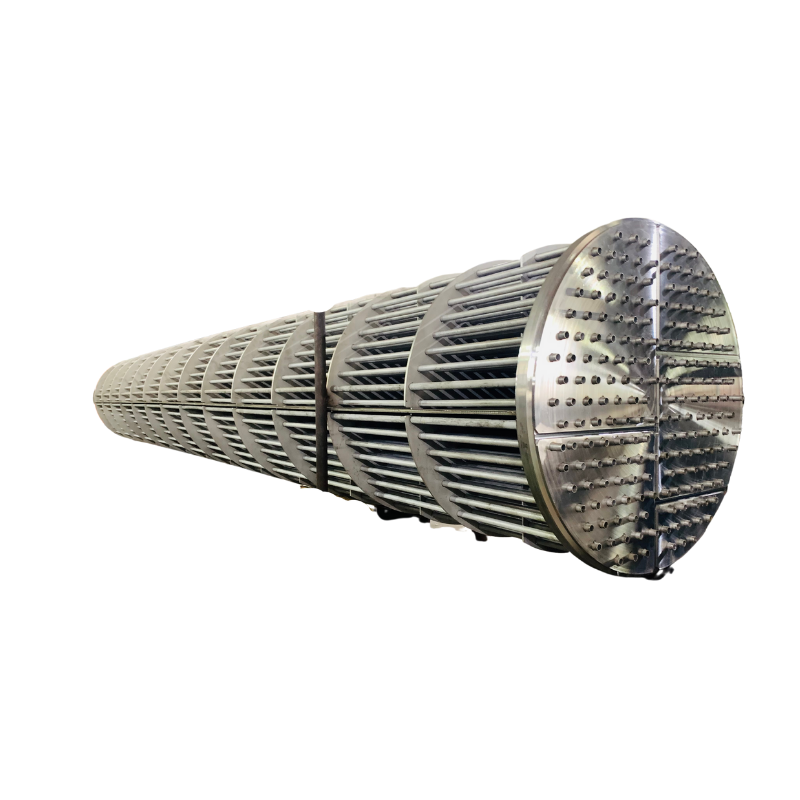

Removable Tube Bundle for Easy Maintenance

●: Minimize downtime with our fully removable bundle design. It allows for easy mechanical cleaning of the shell side and straightforward inspection of the entire tube structure.

Cost-Efficient Single Tubesheet

●: By requiring only one tubesheet, this design reduces manufacturing complexity and material costs compared to floating-head models, offering a high-performance solution at a competitive price point.

Compact & Energy-Saving

●: Optimized baffle spacing and tube layouts ensure maximum turbulent flow and heat transfer rates, reducing energy consumption and saving valuable floor space.

Customizable for Any Industry

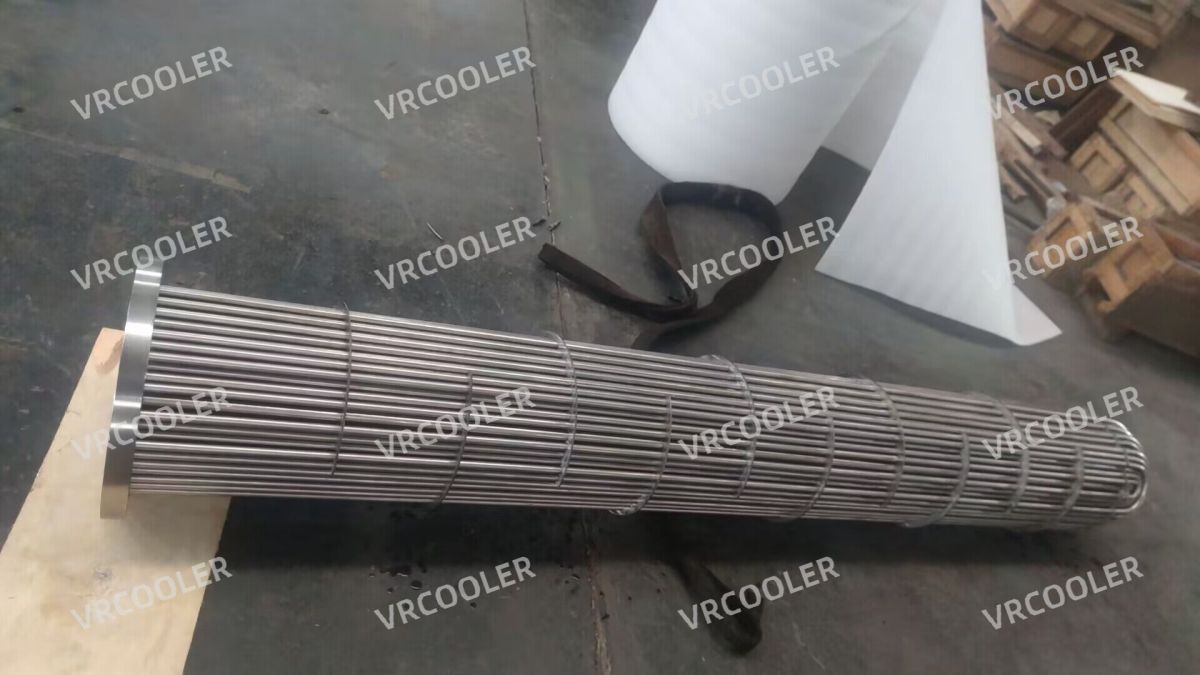

●: Available in Stainless Steel (304/316L), Carbon Steel, or specialized alloys (CuNi/Titanium) to match your specific corrosive or high-pressure environment.

Frequently Asked Questions (FAQ)

Q: How do I clean the inside of the U-tubes?

A: While the outside (shell side) can be mechanically cleaned after removing the bundle, the inside (tube side) is best cleaned using chemical circulation or high-pressure water jetting.

Q: Why choose U-Tube over a fixed tubesheet?

A: If your process involves high temperature differences between the shell and tube sides, a fixed tubesheet will fail due to stress. The U-Tube is specifically designed to handle this expansion safely.

Ready to upgrade your thermal system?

Don't let thermal stress compromise your efficiency. Contact our engineering team today for a technical consultation and a customized quote based on your specific flow rates and temperature requirements.
