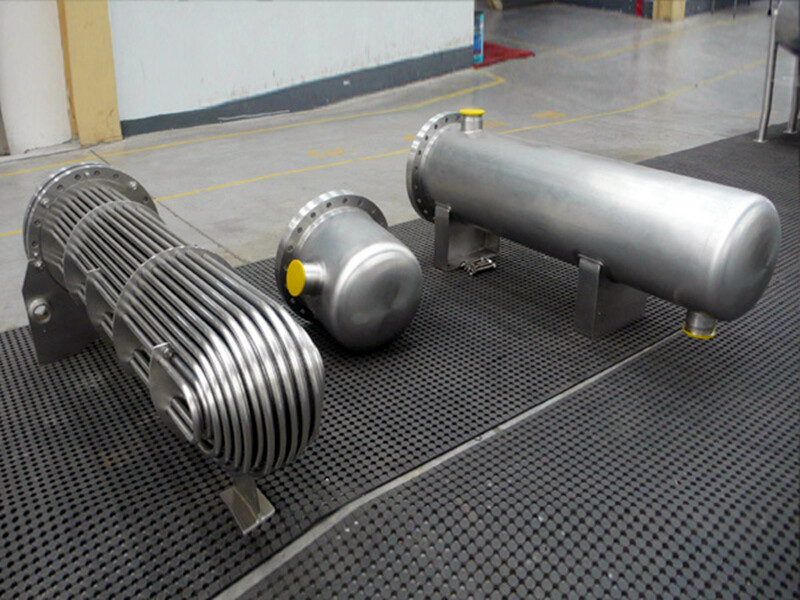

Structure

Shell: It is a cylindrical outer casing, usually made of steel, which provides a containment structure for the heat exchange process. The shell has inlet and outlet ports for the cooling medium.

Tube Bundle: Consists of numerous tubes arranged inside the shell. The tubes are typically made of materials with good heat transfer properties, such as copper - alloy or stainless steel. The gas to be cooled flows through the tubes, while the cooling fluid flows outside the tubes, around the tube bundle.

Tube Sheets: Located at both ends of the tube bundle, the tube sheets are used to fix the tubes in place and separate the shell - side and tube - side fluids. They are usually made of thick metal plates to withstand the pressure difference between the two sides.

Baffles: Installed inside the shell, baffles are used to direct the flow of the cooling fluid, increasing its velocity and turbulence. This helps to improve the heat transfer efficiency by enhancing the contact between the cooling fluid and the tube surface.

Working Principle

Heat Exchange: The hot gas enters the tubes of the gas cooler. Meanwhile, the cooling fluid, which is usually water or air, is introduced into the shell side. Due to the temperature difference between the hot gas in the tubes and the cooler fluid outside, heat is transferred from the gas through the tube walls to the cooling fluid. As a result, the gas is cooled down, and the cooling fluid absorbs the heat and gets heated up.

Phase Change (if applicable): In some cases, if the gas reaches its dew point during the cooling process, it may undergo a phase change from vapor to liquid. This phase change further enhances the heat transfer process, as the latent heat of condensation is also released and transferred to the cooling fluid.

Advantages

High Heat Transfer Efficiency: The large surface area of the tube bundle and the good heat transfer properties of the materials enable efficient heat exchange between the gas and the cooling fluid. This allows for effective cooling of the gas even at high flow rates.

Compact Design: Shell - tube gas coolers can achieve a high heat transfer rate in a relatively small space, making them suitable for applications where space is limited. Their compact design also helps in reducing the overall footprint of the equipment.

Versatility: They can be used to cool a wide variety of gases, and the design can be customized to meet different process requirements, such as different gas flow rates, temperatures, and pressures. Additionally, they can handle both single - phase and two - phase gas - liquid mixtures.

Reliable Operation: With proper maintenance, shell - tube gas coolers can operate continuously for long periods. The robust structure of the shell and tubes, along with the use of high - quality materials, ensures their durability and reliability in harsh industrial environments.
